CSD19534Q5A
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD19534Q5A
Datasheet:
Description:

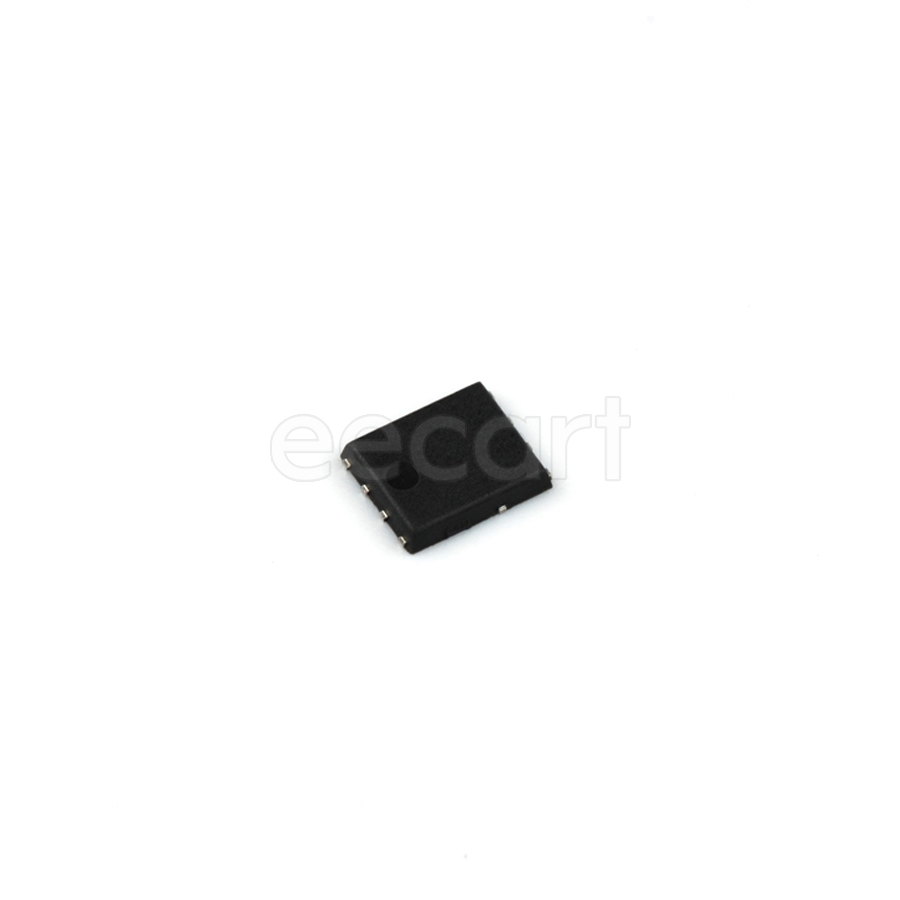

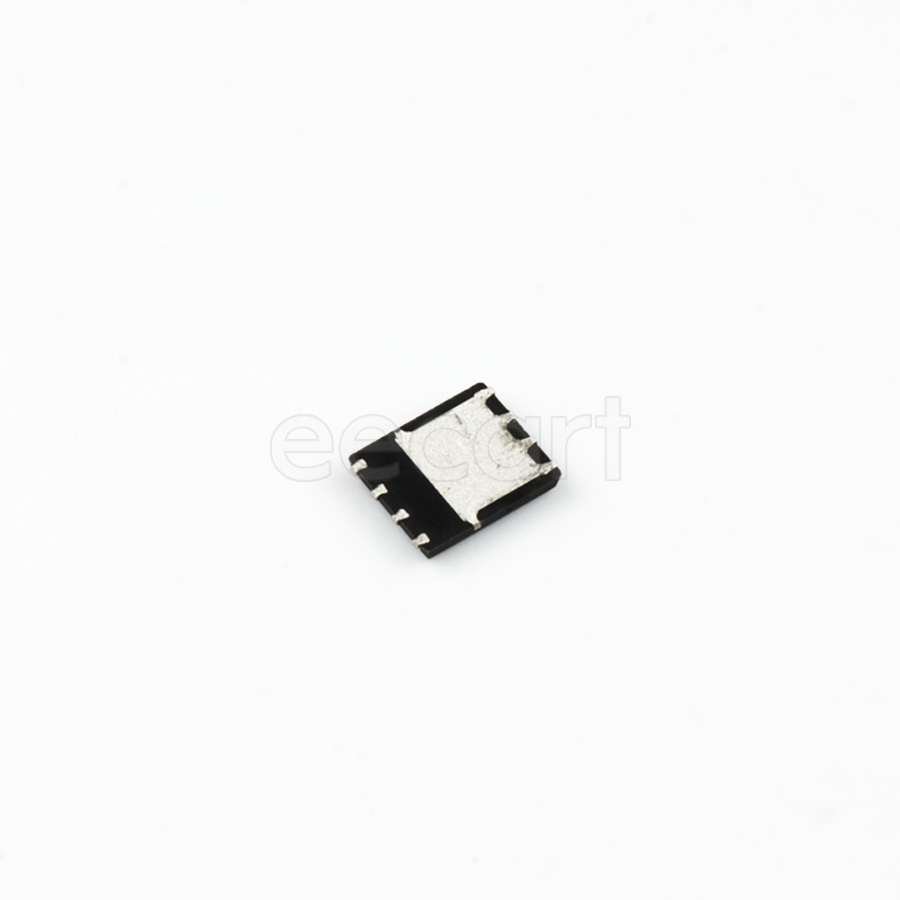

MOSFETs VSONP-8 SMD/SMT N-Channel number of channels:1 3.2 W 100 V Continuous Drain Current (ID):10 A 17 nC
| Parameter | Value |
|---|---|
| Length | 4.9 mm |
| Width | 6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 1.1 mm |
| Packaging | Reel |
| Thickness | 1 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lifecycle Status | Active |
| Max Power Dissipation | 3.2 W |
| Power Dissipation | 3.2 W |
| Number of Channels | 1 |
| Input capacitance | 1.68 nF |
| Continuous Drain Current (ID) | 10 A |
| Rds On Max | 15.1 mΩ |
| Drain to Source Voltage (Vdss) | 100 V |
| Turn-On Delay Time | 9 ns |
| Turn-Off Delay Time | 20 ns |
| Element Configuration | Single |
| Fall Time | 6 ns |
| Rise Time | 14 ns |
| Gate Charge | 17 nC |
| Drain to Source Resistance | 12.6 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 100 V |
| Gate to Source Threshold Voltage | 2.4 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 231
Distributors
pcbx
pcbxUnit Price$0.73968
Ext.Price$0.73968
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73968 | $0.73968 |
| 10 | $0.59818 | $5.98180 |
| 25 | $0.54864 | $13.71600 |
| 50 | $0.50321 | $25.16050 |
| 100 | $0.46153 | $46.15300 |
| 300 | $0.41779 | $125.33700 |
| 500 | $0.37820 | $189.10000 |
| 1000 | $0.35589 | $355.89000 |
